Steering System

Exploded Diagrams — Steering System

14 diagrams for this section. Click a part to view it.

Diagram 1  (8 parts)
Diagram 2  (26 parts)
Exploded diagram
RefPart
1Steering Wheel Assembly - Deep Black 5
1Steering Wheel Assembly - Grey Matte Electroplate 1
1Steering Wheel Assembly - Grey Matte Electroplate 1

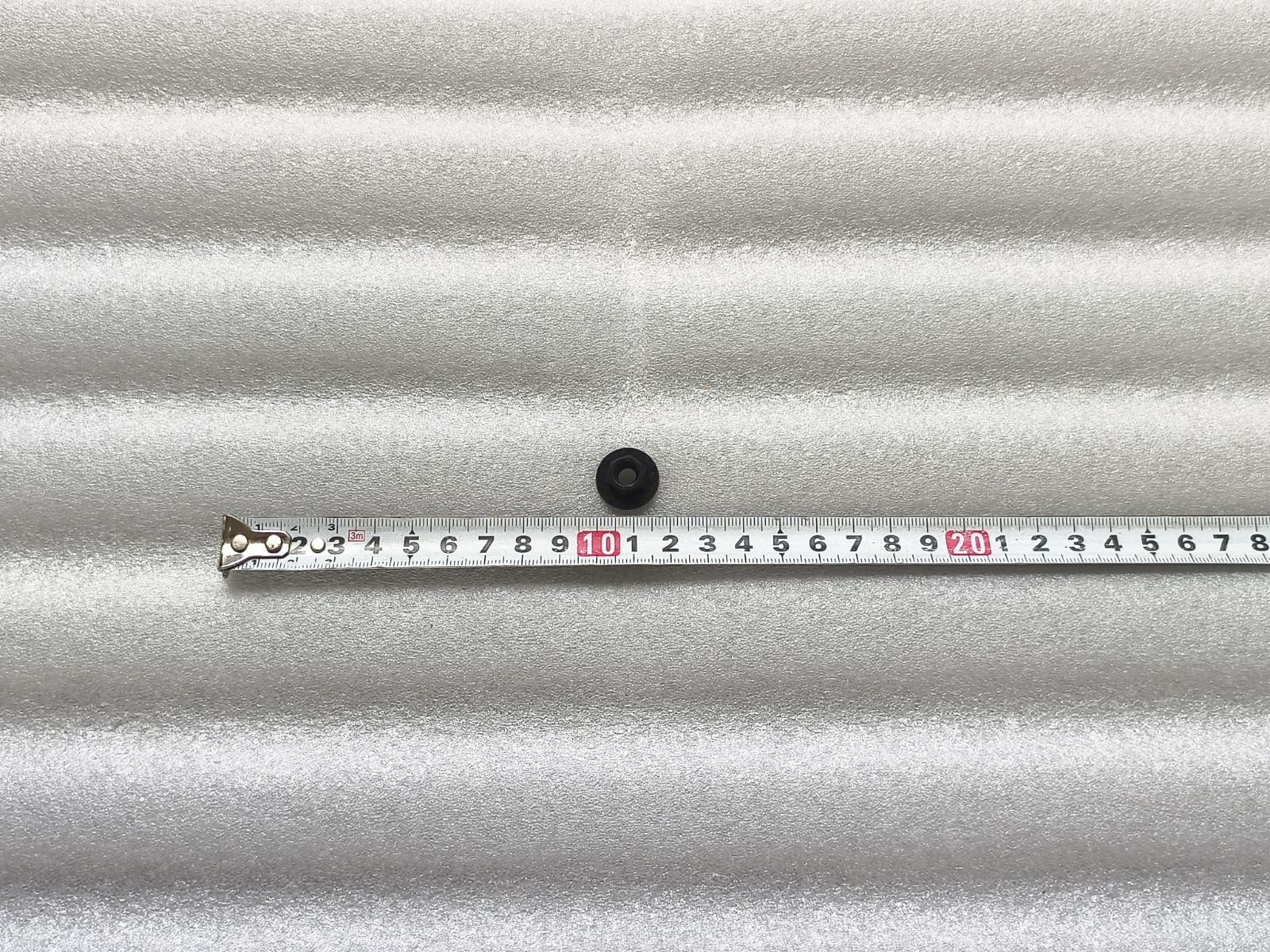

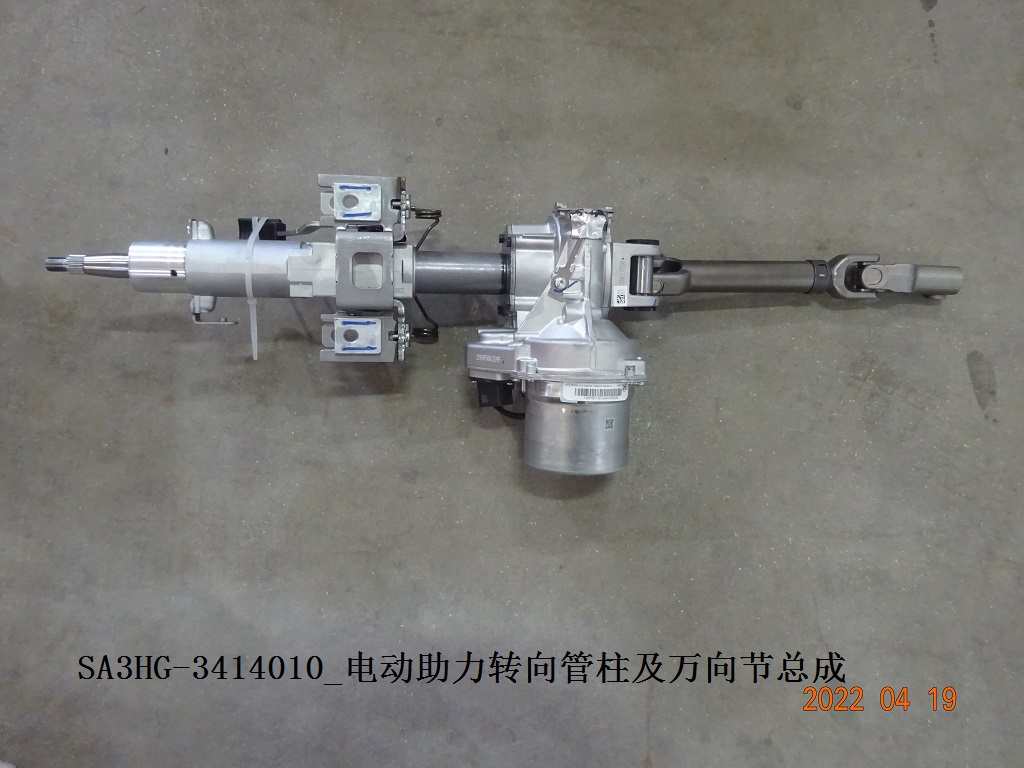

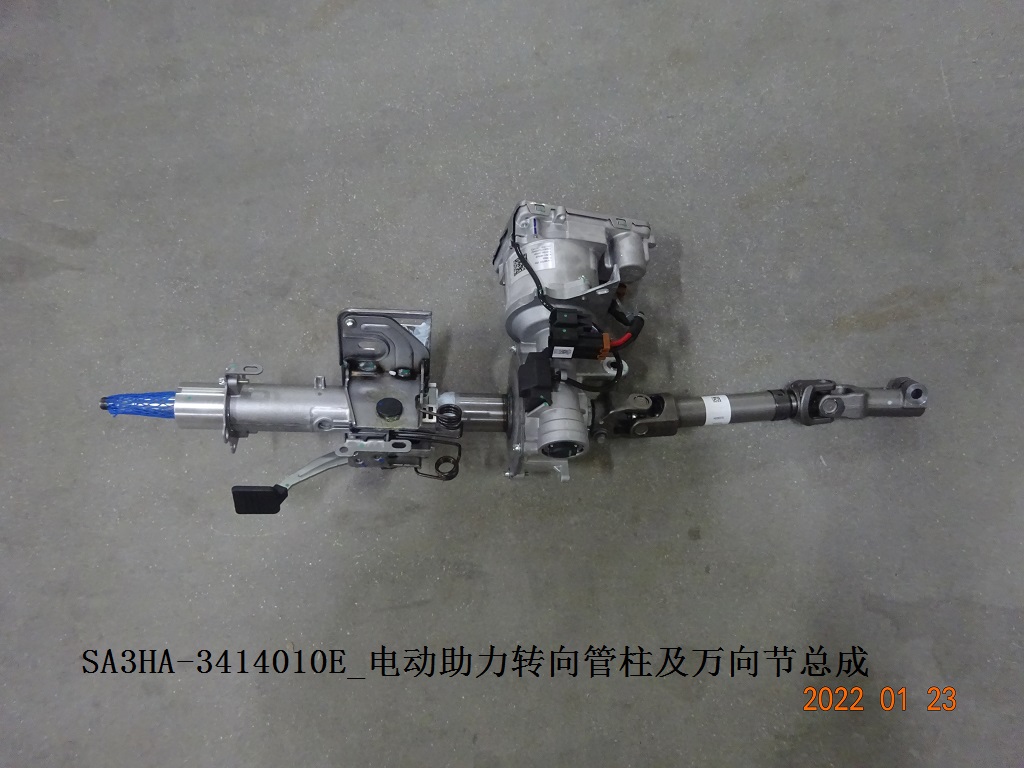

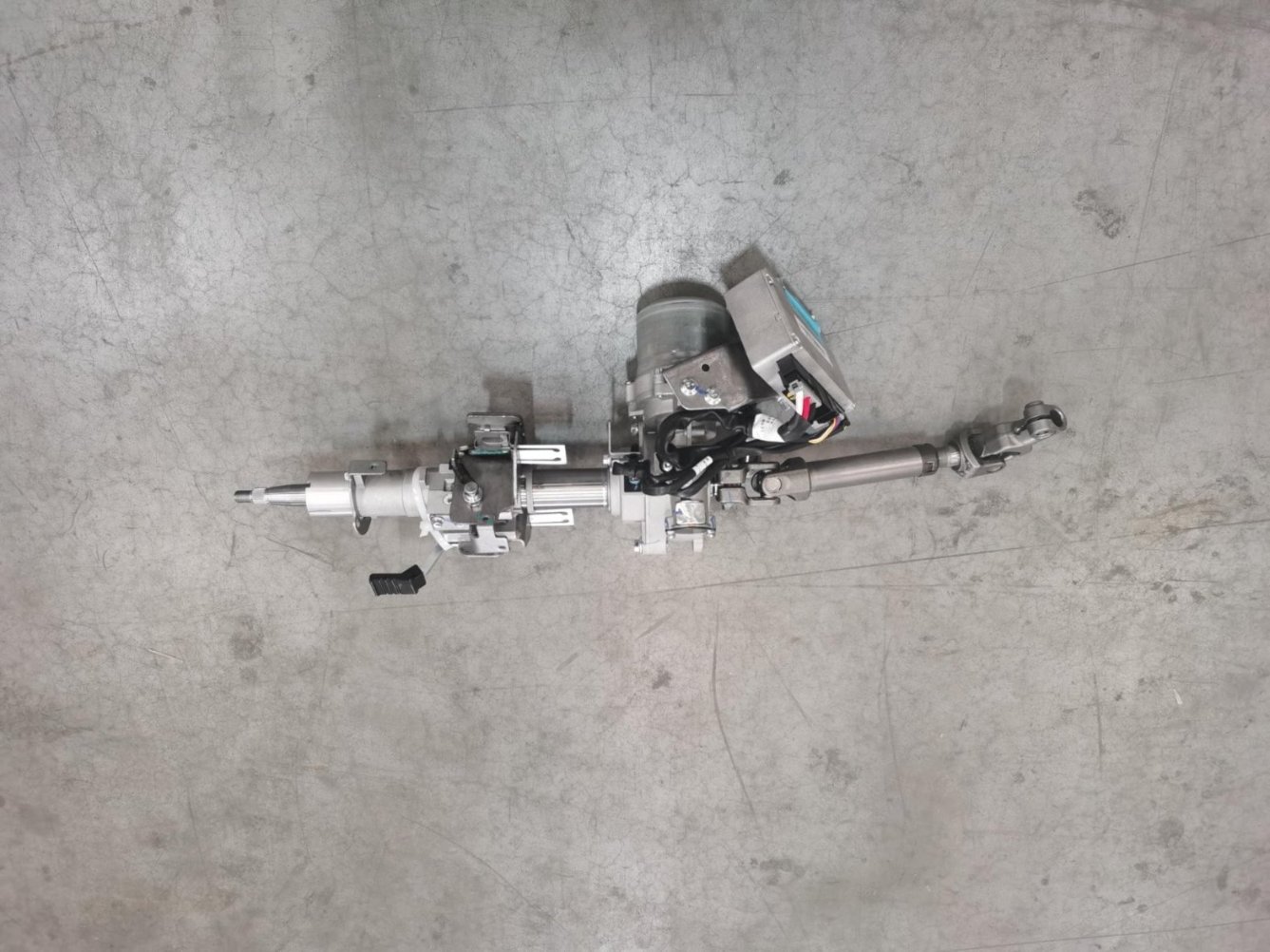

3Electric Power Steering Column and Universal Joint Assembly

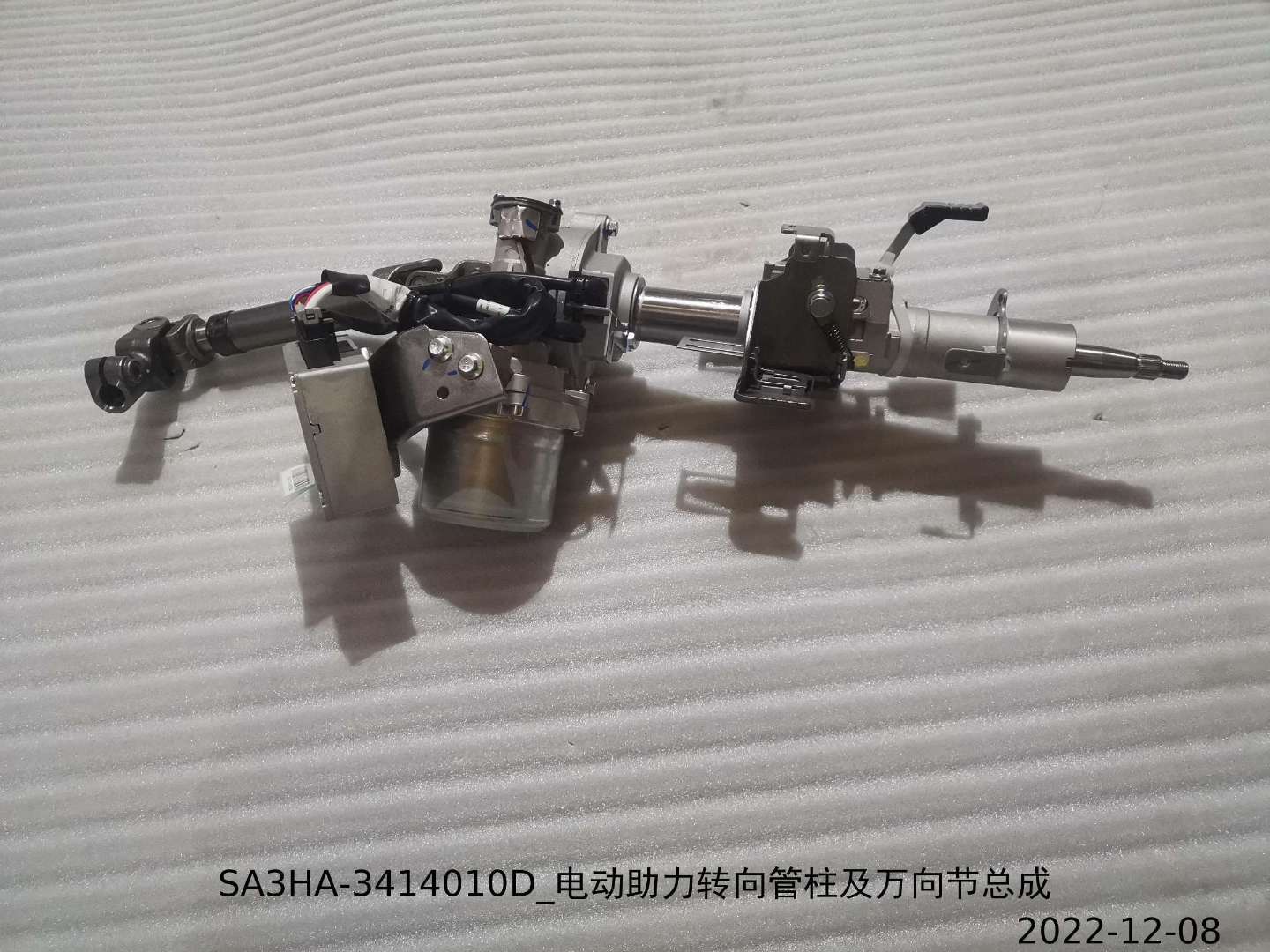

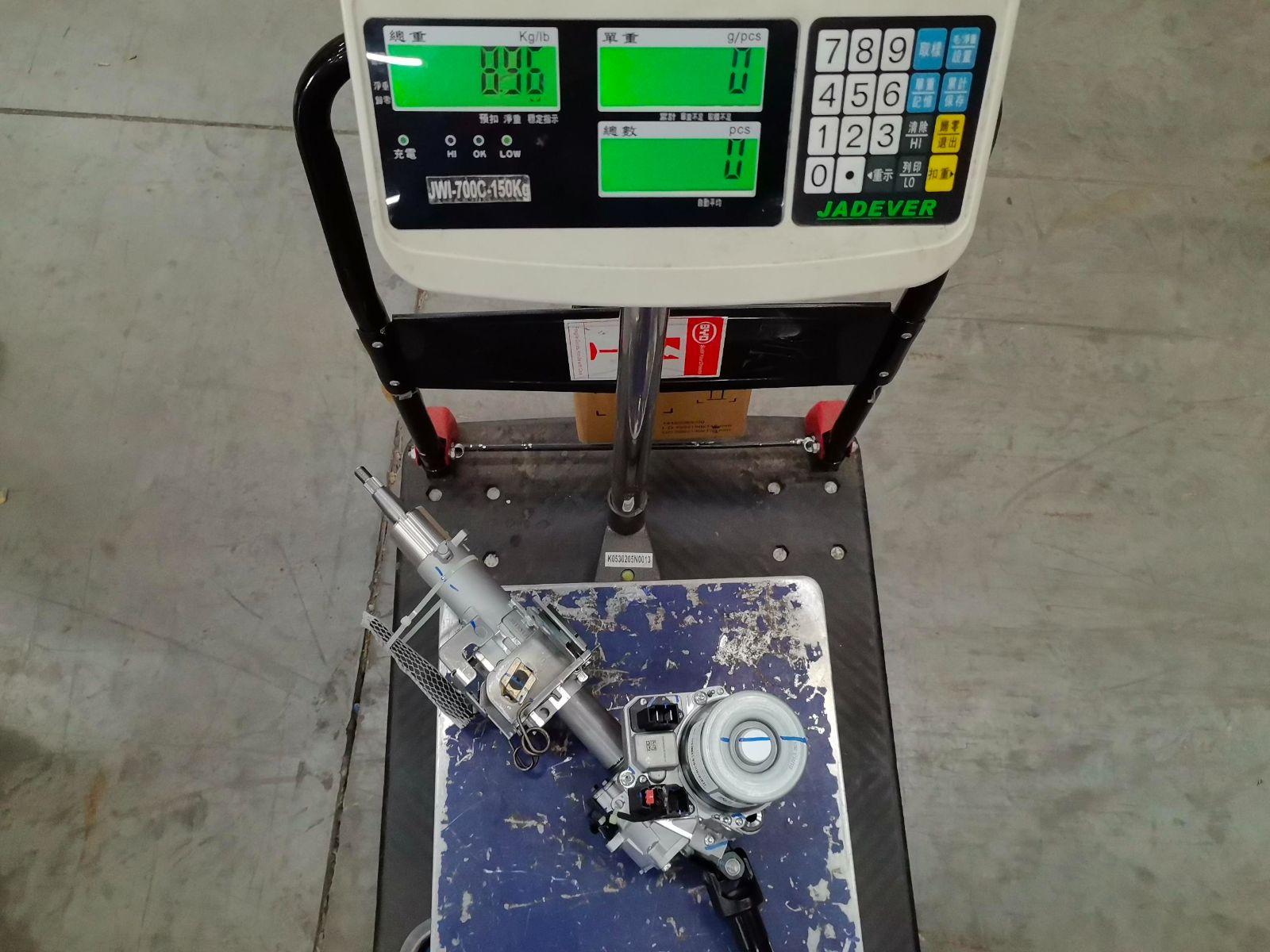

3Electric Power Steering Column and Universal Joint Assembly
3Electric Power Steering Column and Universal Joint Assembly
4BYDQ183E14145TF61KP1.5_Hex Flange Bolt and Flat Washer Assembly
7Mechanical steering gear with tie rod assembly
7Mechanical steering gear with tie rod assembly
8BYDQ183E14145TF61KHP1.5 Hex Flange Bolt and Plain Washer Assembly
9Q33814T13F70KHP1.5_Non-Metallic Insert Hexagon Flange Lock Nut
10Q387B12T2F61HP1.25_Hex Slotted Thin Nut
12Steering Tie Rod Outer Ball Joint Assembly
12Steering Tie Rod Outer Ball Joint Assembly
12Steering Tie Rod Outer Ball Joint Assembly
13Steering Tie Rod Outer Ball Joint Assembly
13Steering Tie Rod Outer Ball Joint Assembly
13Steering Tie Rod Outer Ball Joint Assembly
14Intermediate Shaft Assembly
14Intermediate Shaft Assembly
15Steering Column Assembly
15Steering Column Assembly
15Steering Column Assembly
16EPS Motor and Controller Assembly
16EPS Motor and Controller Assembly
16EPS Motor and Controller Assembly
Diagram 3  (9 parts)
Diagram 4  (21 parts)
Exploded diagram
RefPart
1Steering Wheel Assembly - Sea Salt Grey
1Steering Wheel Assembly - Sea Salt Grey
1Steering Wheel Assembly - Sea Salt Grey
1Steering Wheel Assembly - Sea Salt Grey
1Steering Wheel Assembly - Twilight Blue
1Steering Wheel Assembly - Twilight Blue
1Steering Wheel Assembly - Twilight Blue
1Steering Wheel Assembly - Twilight Blue
2Q32012T13F61HP1.25_Hexagon Flange Nut

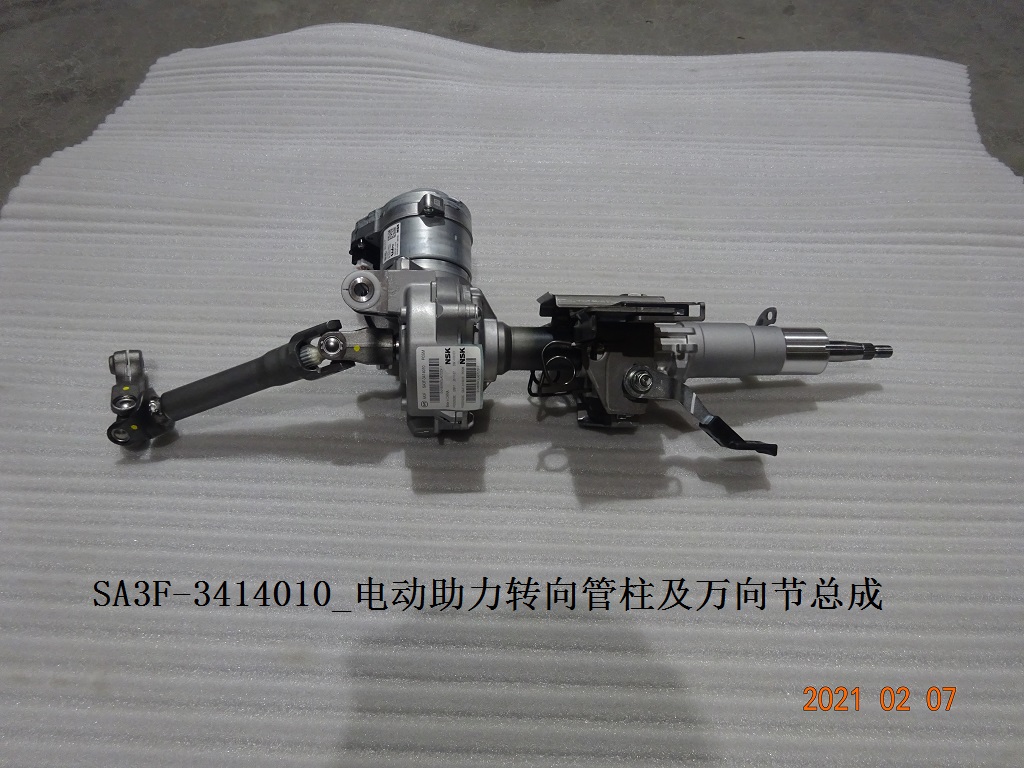

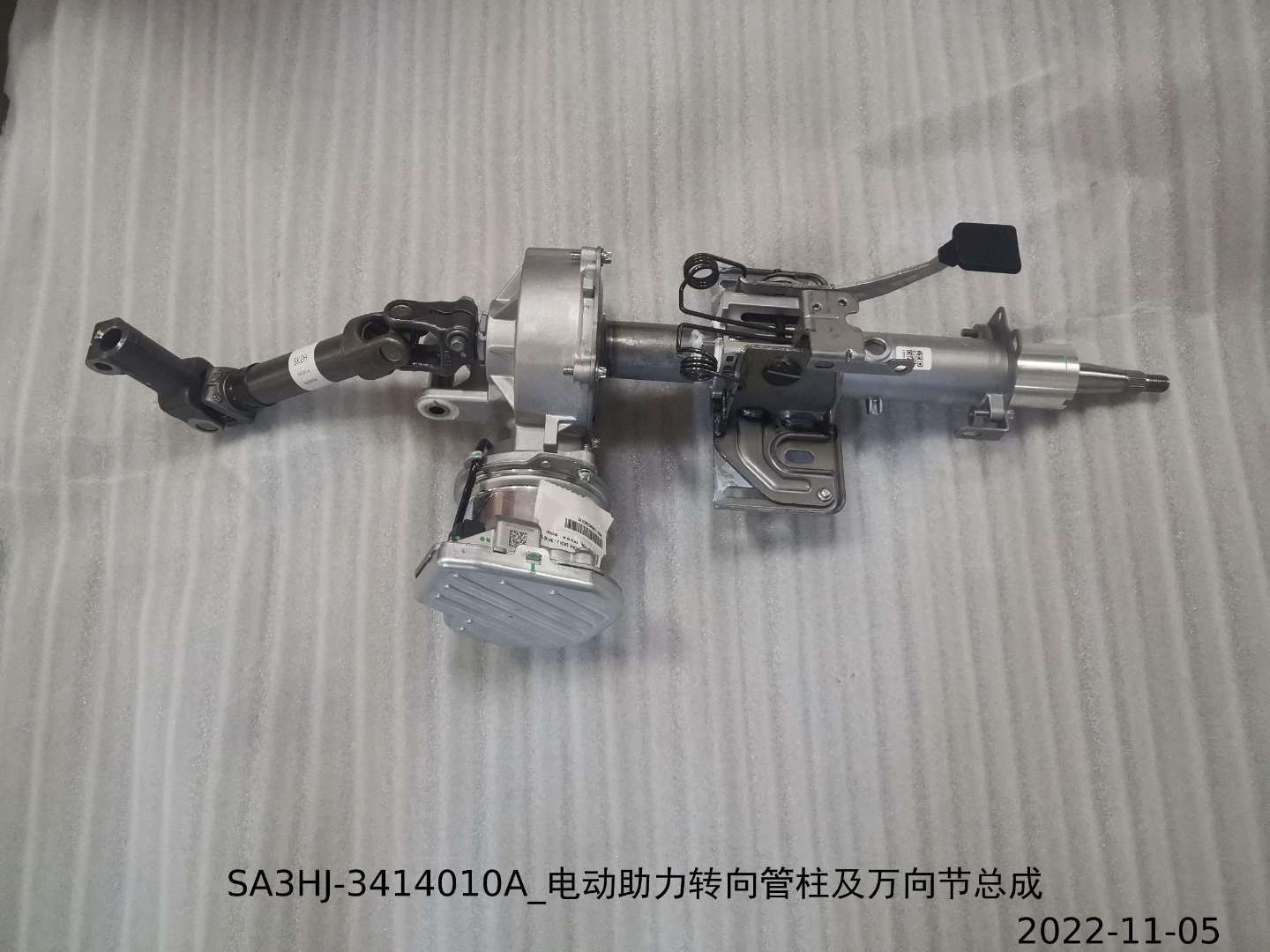

3Electric Power Steering Column and Universal Joint Assembly
4Q32008T13F61HP1.25_Hexagon Flange Nut
5BYDQ183A1080TF61HP1.25 Hex Flange Bolt and Plain Washer Assembly
5BYDQ183A1080TF61P1.25 Hex Flange Bolt and Plain Washer Assembly
6Q1801030TF62KHP1.25_Hex Flange Face Serrated Bolt
7BYDQ392A06-2T2F71HP1_Stepped Nut
8Mechanical steering gear with tie rod assembly
8Mechanical steering gear with tie rod assembly
9BYDQ183C1492TF61KHP1.5 Hex Flange Bolt and Plain Washer Assembly
10BYDQ31912-6T13F62KHP1.25 Hexagon Flange Slotted Nut
12Steering Tie Rod Assembly
12Steering Tie Rod Outer Ball Joint Assembly
Diagram 5  (18 parts)
Diagram 6  (6 parts)
Diagram 7  (7 parts)
Diagram 8  (25 parts)
Exploded diagram
RefPart
1Steering Wheel Assembly - Deep Black 5
1Steering Wheel Assembly - Deep Black 5
1Steering Wheel Assembly - Eclipse Blue
1Steering Wheel Assembly - Eclipse Blue
1Steering Wheel Assembly - Eclipse Blue
1Steering Wheel Assembly - Eclipse Blue
1Steering Wheel Assembly - Eclipse Blue

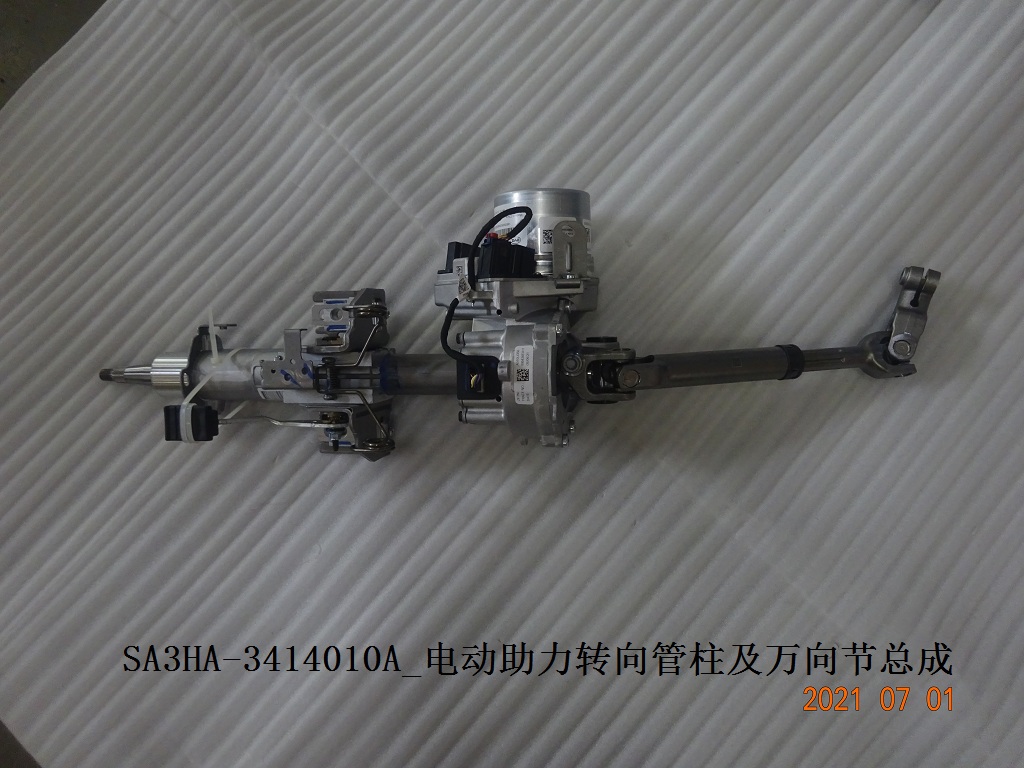

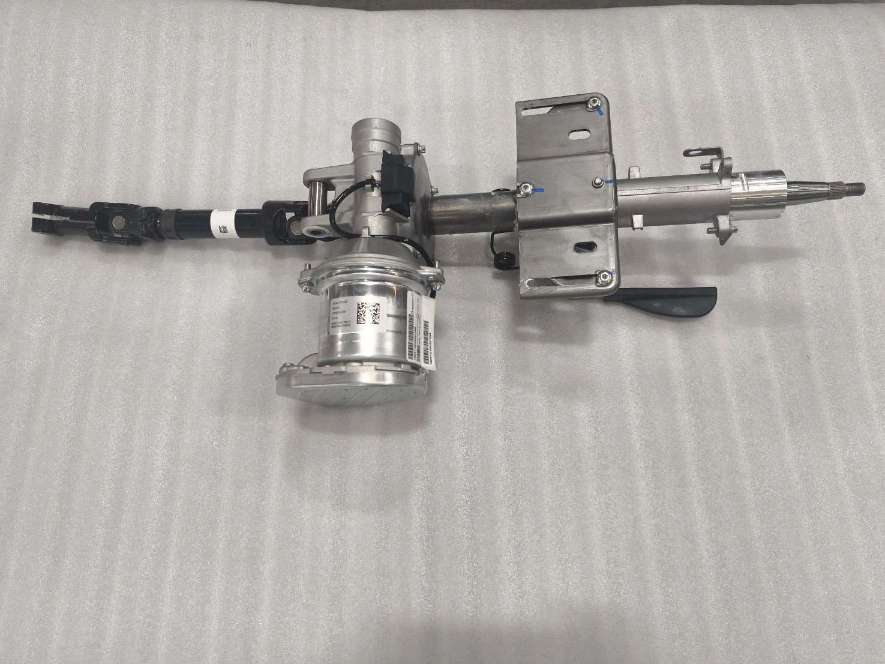

2Electric Power Steering Column and Universal Joint Assembly
2Electric Power Steering Column and Universal Joint Assembly
2Electric Power Steering Column and Universal Joint Assembly
2Electric Power Steering Column and Universal Joint Assembly
2Electric Power Steering Column and Universal Joint Assembly
4Universal Joint Dust Boot Assembly I
6Universal Joint Dust Boot Assembly II
8Mechanical steering gear with tie rod assembly
11Brushless motor assembly
12EPS Control Module
13Intermediate Shaft Assembly
13Intermediate Shaft Assembly
13Intermediate Shaft Assembly
14Steering Column Assembly
14Steering Column Assembly
14Steering Column Assembly
16Steering Tie Rod Outer Ball Joint Assembly
17Body assembly - full leather - eclipse blue
Diagram 9  (3 parts)
Diagram 10  (9 parts)
Diagram 11  (13 parts)
Diagram 12  (5 parts)
Diagram 13  (2 parts)
Diagram 14  (12 parts)
