Instrument Panel Lower Body

Exploded Diagrams — Instrument Panel Lower Body

12 diagrams. Hover a part to highlight it on the diagram; click to open it.

Diagram 1 (29 parts)
RefPart
1Locating damping rubber bushing
3Instrument Panel Right End Trim Panel Assembly - Dusk Blue
3Instrument Panel Right End Trim Panel Assembly - Wine Beige
4Instrument Panel Right Skin Trim Panel Assembly - Twilight Blue
4Instrument Panel Right Skin Trim Panel Assembly - Wine Beige
5Instrument Panel Right Lower Sound Insulation Panel Assembly - Dusk Blue
5Instrument Panel Right Lower Sound Insulation Panel Assembly - Sweet Wine Beige
6Instrument Panel Left End Trim Panel Assembly - Twilight Blue
6Instrument Panel Left End Trim Panel Assembly - Wine Beige
7Instrument Panel Left Skin Trim Panel Assembly - Dusk Blue
7Instrument Panel Left Skin Trim Panel Assembly - Sweet Wine Beige
8Instrument Panel Left Lower Sound Insulation Panel Assembly - Twilight Blue
8Instrument Panel Left Lower Sound Insulation Panel Assembly - Wine Beige
9Instrument Panel Left Lower Trim Panel Assembly - Twilight Blue
9Instrument Panel Left Lower Trim Panel Assembly - Wine Beige
10Glove Box Mounting Base Assembly - Dusk Blue
10Glove Box Mounting Base Assembly - Wine Beige
11Glove Box Buffer Block Assembly
12Glove Box Assembly - Dusk Blue
12Glove Box Assembly - Wine Beige
13Combination Switch Upper Guard Panel Assembly-Dusk Blue
13Combination Switch Upper Guard Panel Assembly-Twilight Purple
14Combination Switch Lower Guard Panel Assembly-Dusk Blue
14Combination Switch Lower Guard Panel Assembly-Twilight Purple
15Instrument Cluster Lower Trim Strip Assembly-Dusk Blue
15Instrument Cluster Lower Trim Strip Assembly-Sweet Wine Beige
15Instrument Cluster Lower Trim Strip Assembly-Twilight Purple
16Glove Box Damper Assembly
16Glove Box Damper Assembly
Diagram 2 (18 parts)
RefPart
1Glove Box Assembly - Deep Black 5
1Glove Box Assembly - Deep Black 5
1Glove Box Assembly - Mist Grey
2Glove Box Upper Trim Panel - Deep Black 5
2Glove Box Upper Trim Panel - Mist Grey
3Instrument Panel Lower Body Assembly - Deep Black 5
3Instrument Panel Lower Body Assembly - Grey Rose Pink
3Instrument Panel Lower Body Assembly - Milk Tea Brown
3Instrument Panel Lower Body Sub-assembly - Deep Black 5
4Instrument Panel Left Lower Trim Panel Assembly - Deep Black 5
4Instrument Panel Left Lower Trim Panel Assembly - Mist Grey
5Instrument Panel Right Lower Trim Panel Assembly - Deep Black 5
5Instrument Panel Right Lower Trim Panel Assembly - Mist Grey
6Instrument Panel Left Lower Sound Insulation Panel Assembly - Deep Black 5
6Instrument Panel Left Lower Sound Insulation Panel Assembly - Mist Grey
8Q150B0625T1F62K+Q40206_Hex Head Bolt and Large Washer Assembly
10Glove Box Damper
10Glove Box Damper
Diagram 3 (18 parts)
RefPart
1Glove Box Assembly
2Glove Box Mounting Base Assembly
6Instrument Panel Lower Body Assembly
7Instrument Panel Right Lower Sound Insulation Panel Assembly
7Instrument Panel Right Lower Sound Insulation Panel Assembly
8Instrument Panel Left Lower Trim Panel Assembly
9Instrument Panel Left Lower Sound Insulation Panel Assembly
9Instrument Panel Left Lower Sound Insulation Panel Assembly
10Combination Switch Upper Guard Panel Assembly
11Combination Switch Lower Guard Panel Assembly
13Instrument Cluster Lower Trim Strip Assembly-Deep Black 5
13Instrument Cluster Lower Trim Strip Assembly-Sea Salt Grey
14Left Lower Trim Panel Upper Trim Panel Assembly - Deep Black 5
14Left Lower Trim Panel Upper Trim Panel Assembly - Sea Salt Grey
15Glove Box Upper Trim Panel Assembly - Deep Black 5
15Glove Box Upper Trim Panel Assembly - Sea Salt Grey
16Instrument Panel Left End Trim Panel Assembly
17Instrument Panel Right End Trim Panel Assembly
Diagram 4 (2 parts)
RefPart
3Left Lower Trim Panel Upper Trim Panel Assembly - Deep Black 5
8Glove Box Upper Trim Panel Assembly - Deep Black 5
Diagram 5 (17 parts)
RefPart
2Instrument Panel Left Lower Trim Panel Assembly - Deep Black 5
2Instrument Panel Left Lower Trim Panel Assembly - Mist Grey
3Left Lower Trim Panel Upper Trim Panel Assembly - Deep Black 5
3Left Lower Trim Panel Upper Trim Panel Assembly - Mist Grey
4Combination Switch Lower Guard Panel Assembly
5Instrument Panel Right Lower Sound Insulation Panel Assembly - Deep Black 5
5Instrument Panel Right Lower Sound Insulation Panel Assembly - Mist Grey
6Combination Switch Upper Guard Panel Assembly
7Glove Box Assembly - Deep Black 5
7Glove Box Assembly - Mist Grey
8Glove Box Upper Trim Panel Assembly - Deep Black 5
8Glove Box Upper Trim Panel Assembly - Mist Grey
9Glove Box Mounting Base Assembly - Deep Black 5
10Instrument Panel Right Lower Trim Panel Assembly - Deep Black 5
10Instrument Panel Right Lower Trim Panel Assembly - Mist Grey
11Instrument Panel Left End Trim Panel Assembly - Deep Black 5
12Instrument Panel Right End Trim Panel Assembly - Deep Black 5
Diagram 6 (17 parts)
RefPart
1Instrument Panel Lower Body Assembly
1Instrument Panel Lower Body Assembly
2Instrument Panel Left End Trim Panel Assembly
2Instrument Panel Left End Trim Panel Assembly - Grey Matte Plating 1
3Instrument Panel Right End Decorative Panel Assembly
3Instrument Panel Right End Decorative Panel Assembly - Grey Matte Plating 1
4Instrument Panel Left End Trim Panel Assembly
5Instrument Panel Right End Trim Panel Assembly
6Instrument Panel Left Lower Trim Panel Assembly
7Instrument Panel Right Lower Trim Panel Assembly

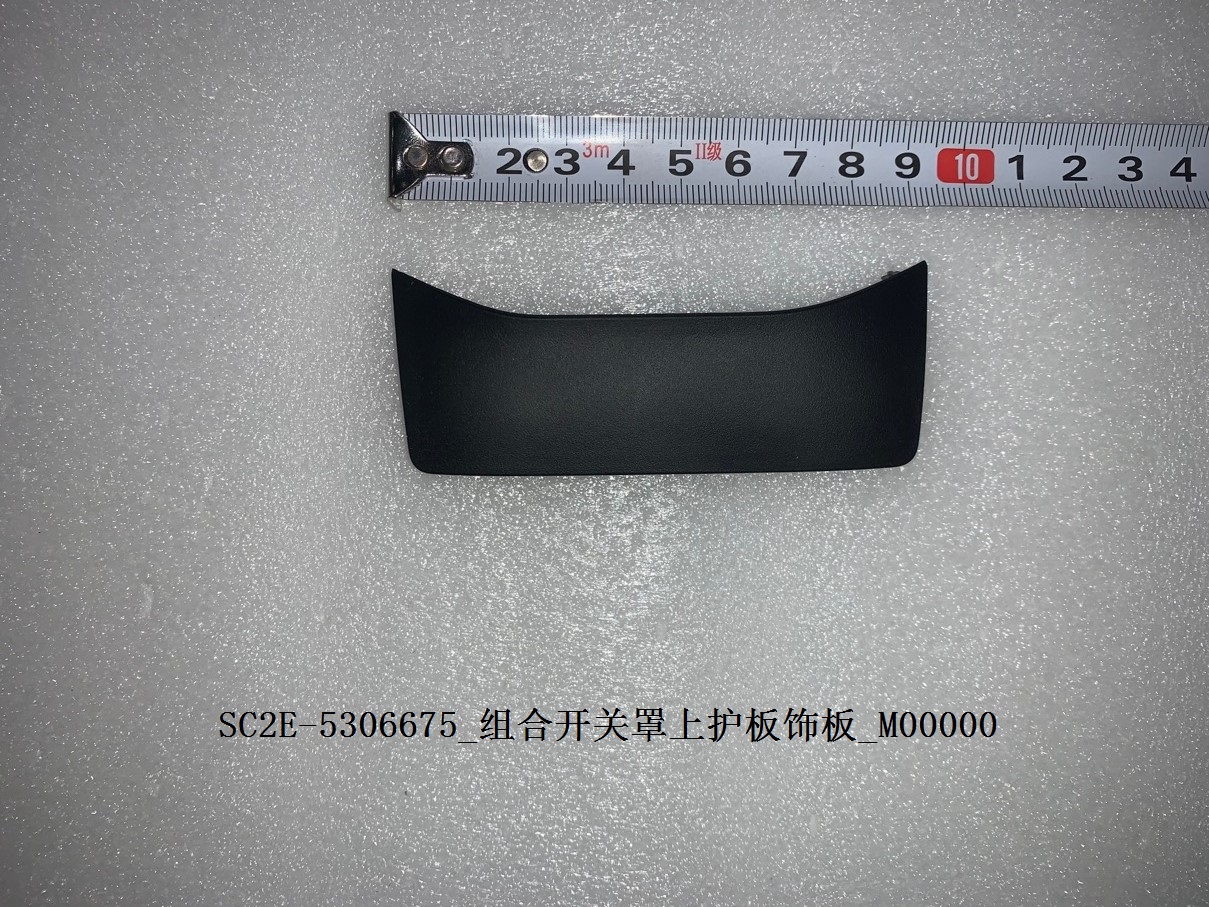

8Combination Switch Cover Upper Guard Panel Trim Plate
9Combination Switch Upper Guard Panel Assembly

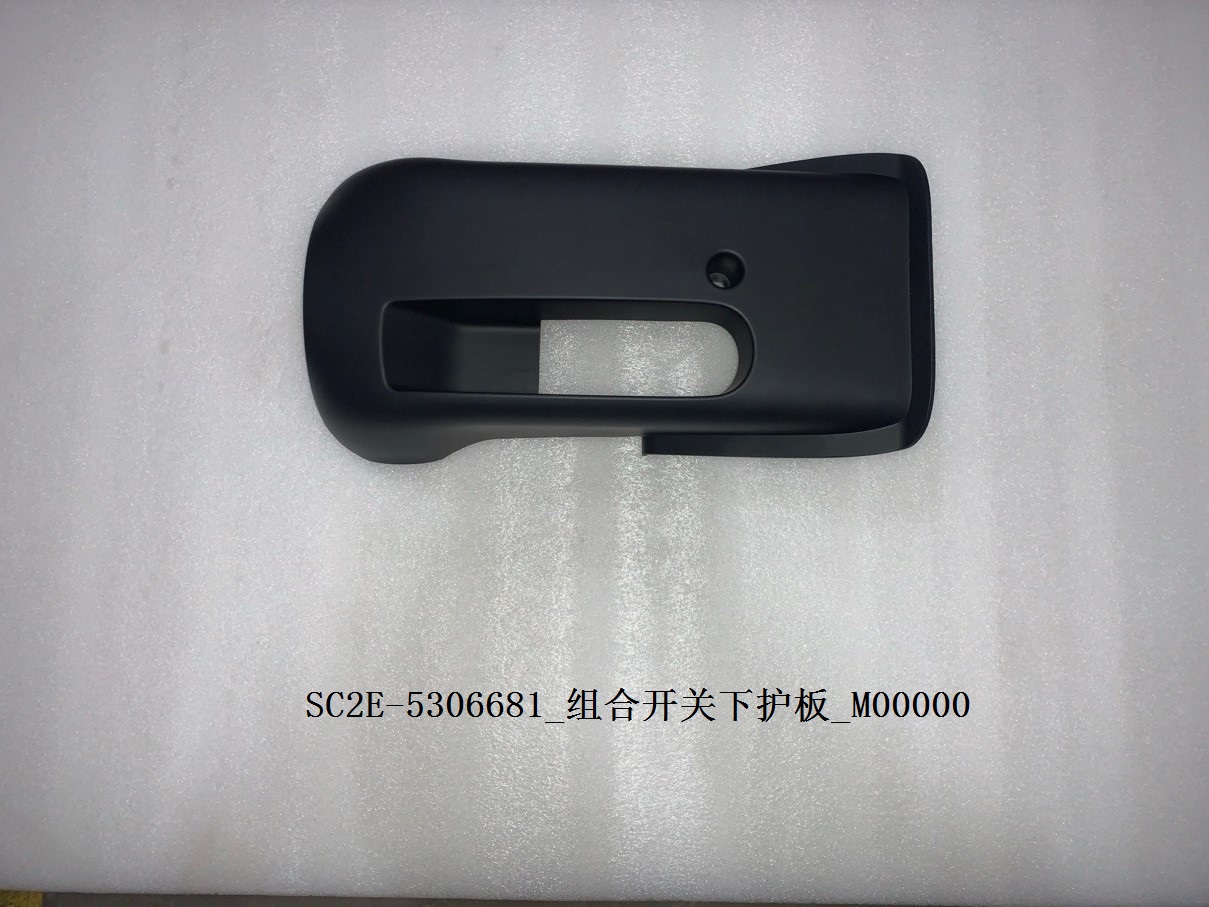

10Combination Switch Lower Guard Panel
11Glove Box Buffer Block
12Glove Box Assembly
13Instrument Panel Right Lower Sound Insulation Panel Assembly
14Glove Box Damper Assembly
Diagram 7 (18 parts)
RefPart
1Glove Box Assembly
1Glove Box Assembly - Dusk Blue
2Glove Box Mounting Base Assembly
2Glove Box Mounting Base Assembly - Dusk Blue
5Glove Box Buffer Block Assembly
6Instrument Panel Left Lower Trim Panel Assembly
6Instrument Panel Left Lower Trim Panel Assembly - Twilight Blue
7Instrument Panel Right Lower Sound Insulation Panel Assembly
7Instrument Panel Right Lower Sound Insulation Panel Assembly - Dusk Blue
8Combination Switch Upper Guard Panel Assembly
8Combination Switch Upper Guard Panel Assembly-Dusk Blue
9Combination Switch Lower Guard Panel Assembly
9Combination Switch Lower Guard Panel Assembly-Dusk Blue
11Instrument Panel Left End Trim Panel Assembly
11Instrument Panel Left End Trim Panel Assembly - Twilight Blue
12Instrument Panel Right End Trim Panel Assembly
12Instrument Panel Right End Trim Panel Assembly - Dusk Blue
13Glove Box Damper Assembly
Diagram 8 (26 parts)
RefPart
1Glove Box Assembly - Dusk Blue
1Glove Box Assembly - Wine Beige
2Glove Box Mounting Base Assembly - Dusk Blue
2Glove Box Mounting Base Assembly - Wine Beige
6Instrument Panel Left Lower Trim Panel Assembly - Twilight Blue
6Instrument Panel Left Lower Trim Panel Assembly - Wine Beige
8Instrument Panel Right Lower Trim Panel Assembly - Dusk Blue
8Instrument Panel Right Lower Trim Panel Assembly - Sweet Wine Beige
9Instrument Panel Left Skin Trim Panel Assembly - Dusk Blue
9Instrument Panel Left Skin Trim Panel Assembly - Sweet Wine Beige
10Instrument Panel Right Skin Trim Panel Assembly - Twilight Blue
10Instrument Panel Right Skin Trim Panel Assembly - Wine Beige
11Instrument Panel Right Lower Sound Insulation Panel Assembly - Dusk Blue
11Instrument Panel Right Lower Sound Insulation Panel Assembly - Sweet Wine Beige
12Combination Switch Upper Guard Panel Assembly-Dusk Blue
12Combination Switch Upper Guard Panel Assembly-Sweet Wine Beige
13Combination Switch Lower Guard Panel Assembly-Dusk Blue
13Combination Switch Lower Guard Panel Assembly-Dusk Blue
13Combination Switch Lower Guard Panel Assembly-Sweet Wine Beige
13Combination Switch Lower Guard Panel Assembly-Sweet Wine Beige
14Q2734213F36H_Cross Recessed Large Round Head Self-Tapping Screw
16Instrument Panel Left End Trim Panel Assembly - Twilight Blue
16Instrument Panel Left End Trim Panel Assembly - Wine Beige
17Instrument Panel Right End Trim Panel Assembly - Dusk Blue
17Instrument Panel Right End Trim Panel Assembly - Wine Beige
18Glove Box Damper Assembly
Diagram 9 (27 parts)
RefPart
1Instrument Panel Right End Trim Panel Assembly - Deep Black 5
1Instrument Panel Right End Trim Panel Assembly - Deep Black 5
2Left Lower Trim Panel Upper Trim Panel Assembly - Deep Black 5
2Left Lower Trim Panel Upper Trim Panel Assembly - Deep Black 5
2Left Lower Trim Panel Upper Trim Panel Assembly - Mist Grey
3Instrument Panel Right Lower Trim Panel Assembly - Deep Black 5
3Instrument Panel Right Lower Trim Panel Assembly - Deep Black 5
3Instrument Panel Right Lower Trim Panel Assembly - Mist Grey
4Glove Box Mounting Base Assembly - Deep Black 5
4Glove Box Mounting Base Assembly - Deep Black 5
5Glove Box Assembly - Deep Black 5
5Glove Box Assembly - Deep Black 5
5Glove Box Assembly - Mist Grey
6Glove Box Upper Trim Panel Assembly - Deep Black 5
6Glove Box Upper Trim Panel Assembly - Deep Black 5
6Glove Box Upper Trim Panel Assembly - Mist Grey
7Instrument Panel Left Lower Trim Panel Assembly - Deep Black 5
7Instrument Panel Left Lower Trim Panel Assembly - Deep Black 5
7Instrument Panel Left Lower Trim Panel Assembly - Mist Grey
9Instrument Panel Left End Trim Panel Assembly - Deep Black 5
9Instrument Panel Left End Trim Panel Assembly - Deep Black 5
10Instrument Panel Left Lower Sound Insulation Panel Assembly - Deep Black 5
10Instrument Panel Left Lower Sound Insulation Panel Assembly - Deep Black 5
10Instrument Panel Left Lower Sound Insulation Panel Assembly - Mist Grey
12Glove Box Buffer Block Assembly
12Glove Box Buffer Block Assembly
14Glove Box Damper Assembly
Diagram 10 (6 parts)
RefPart
2Instrument Panel Lower Body Assembly - Deep Black 5
8Instrument Panel Right Lower Trim Panel Assembly - Deep Black 5
10Combination Switch Lower Guard Panel Assembly-Deep Black 5
14Instrument Panel Left End Trim Panel Assembly - Deep Black 5
18Instrument Panel Left Lower Sound Insulation Panel Assembly - Deep Black 5
19Glove Box Mounting Base Assembly - Deep Black 5
Diagram 11 (1 parts)
RefPart
8Instrument Panel Right End Trim Panel Assembly - Deep Black 5
Diagram 12 (12 parts)
Exploded diagram
RefPart
1Glove Box Assembly - Deep Black 5
2Glove Box Mounting Base Assembly - Deep Black 5
5Instrument Panel Lower Body Assembly - Deep Black 5
6Instrument Panel Left Lower Trim Panel Assembly - Deep Black 5
7Instrument Panel Right Lower Trim Panel Assembly - Deep Black 5
8Instrument Panel Left Lower Sound Insulation Panel Assembly - Deep Black 5
9Combination Switch Upper Guard Panel Assembly-Deep Black 5
9Combination Switch Upper Guard Panel Assembly-Sandstone Beige
10Combination Switch Lower Guard Panel Assembly-Deep Black 5
12Instrument Panel Left End Trim Panel Assembly - Deep Black 5
13Instrument Panel Right End Trim Panel Assembly - Deep Black 5
14Glove Box Damper Assembly
Only products on sale

Other

Categories

Find parts for your vehicle

or

Search by VIN

VIN is found on your V5C document or driver's side dashboard

or

Search by Registration

UK registration plate number

Request a Price
